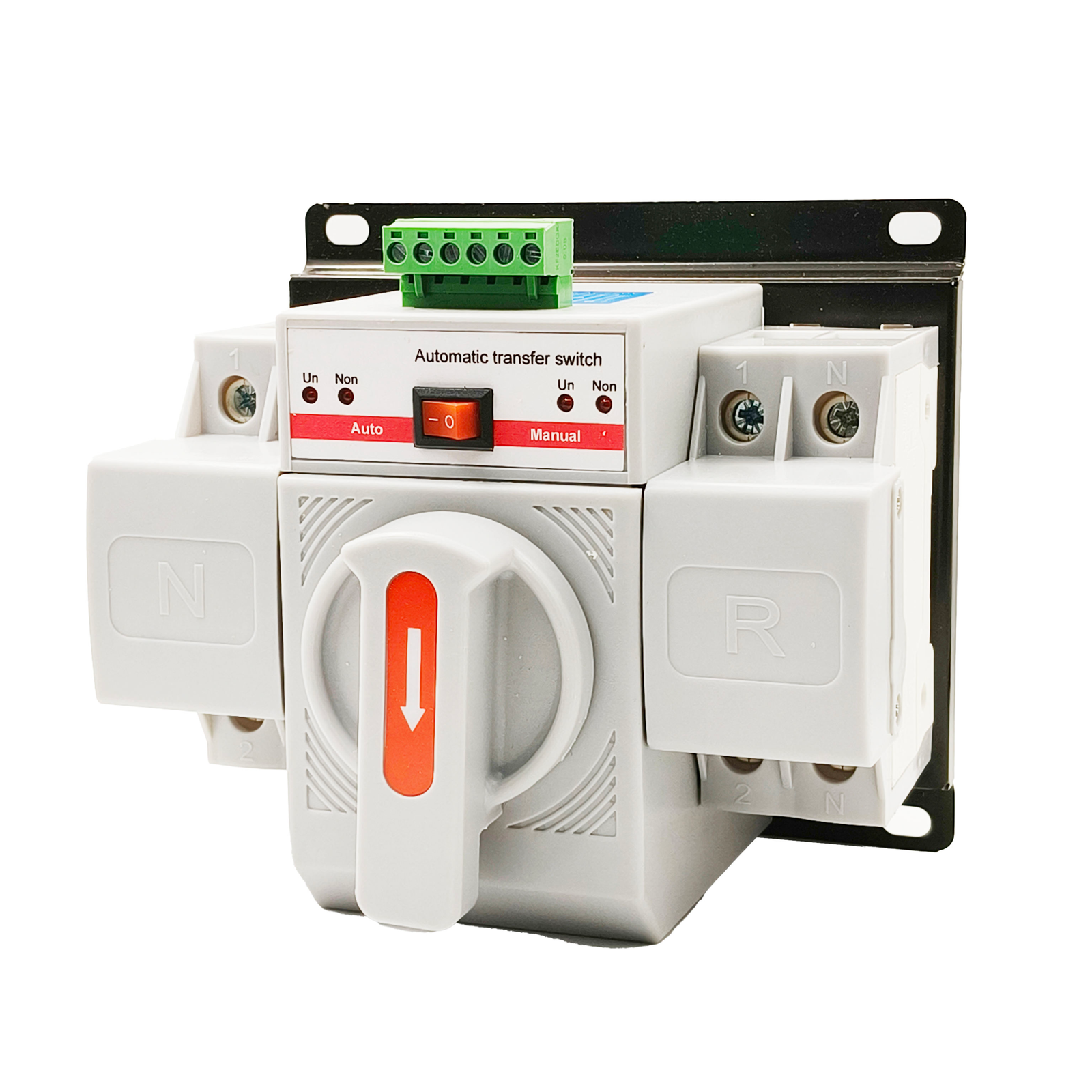

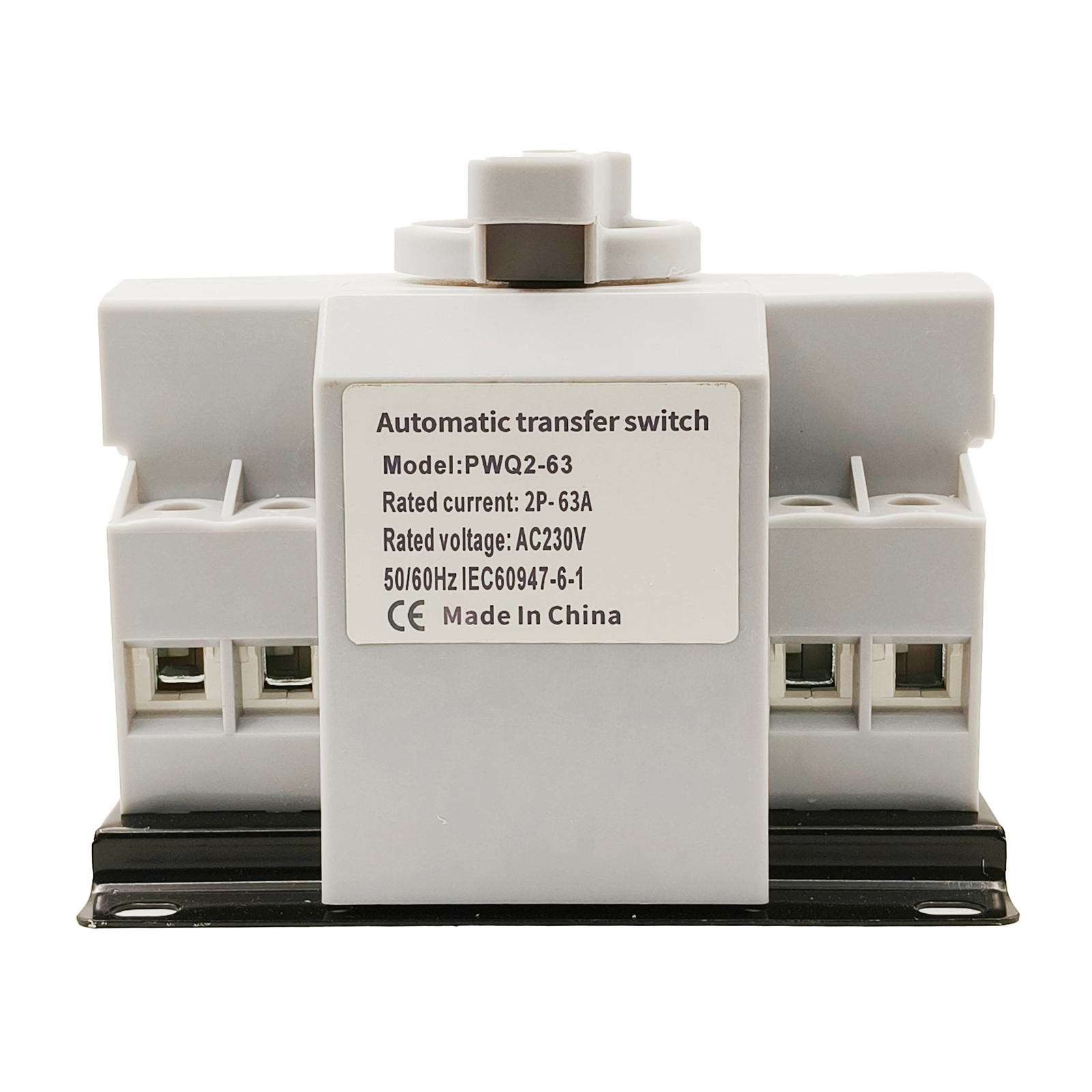

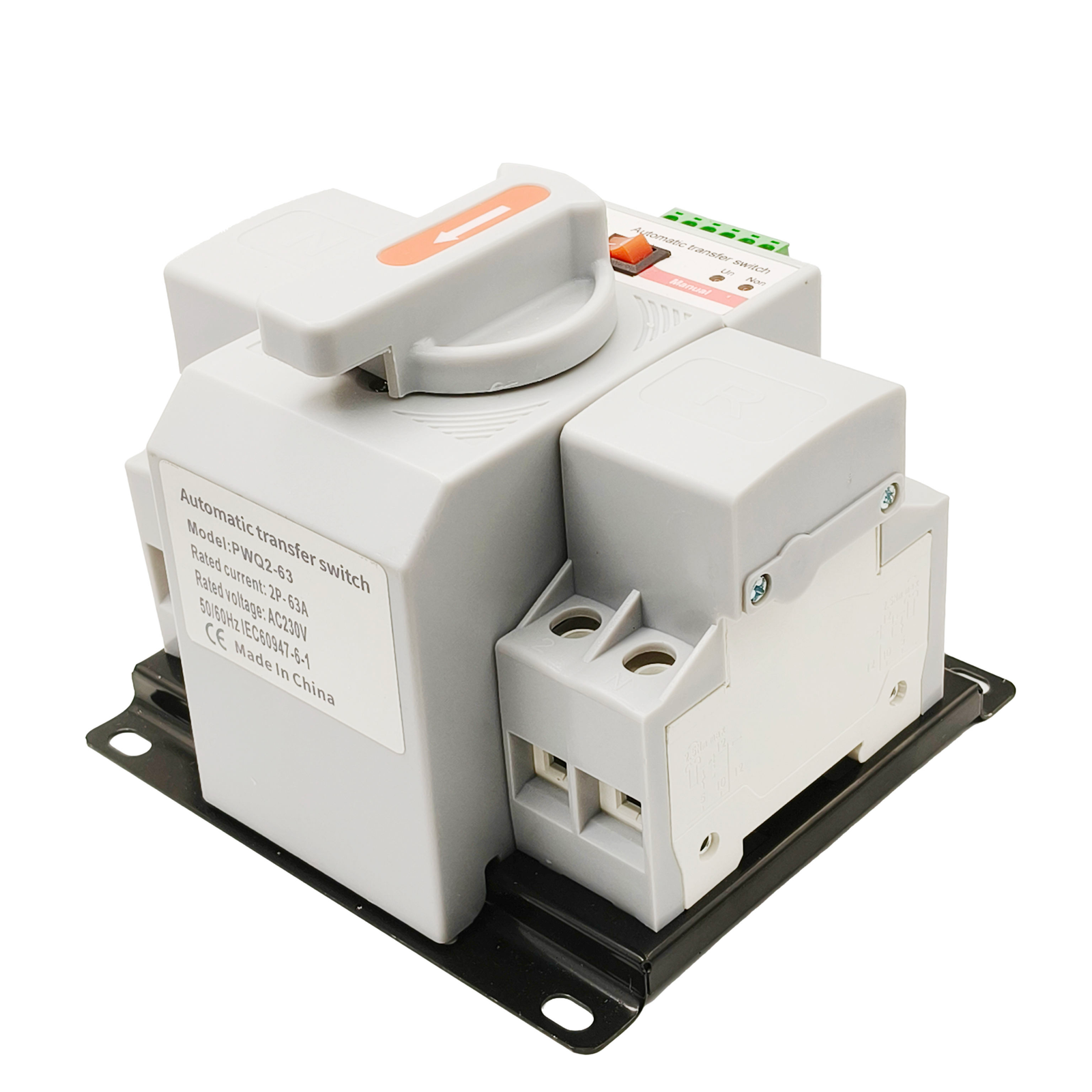

ATS 2/3/4-Pole 63A Dual Power PC Type Changeover Switch
Walax compact PC-type dual-power changeover switch in 2-pole, 3-pole and 4-pole configurations rated to 63A. A cost-effective mains-to-generator transfer solution for homes, shops and small commercial premises.
- Factory-direct pricing · OEM/ODM branding · IEC/CE compliance
- Wholesale & project supply to Africa, SE Asia & the Middle East
2/3/4-Pole Configurations
One frame, every pole count — single-phase (2P) and three-phase (3P/4P) changeover from the same range.
63A DIN-Rail Mount
Compact PC-type body clips onto 35mm DIN rail for fast panel assembly.
Built-In Interlock
Integral mechanical interlock prevents both power sources from closing at once.
Technical Specifications
Standard ratings listed below – custom configurations available on request. Contact our engineers to confirm parameters for your market.
| Standard | IEC 60947-6-1 · CE |
| Rated current (In) | 16A / 20A / 32A / 40A / 63A |
| Poles | 2P / 3P / 4P |
| Rated voltage | AC 230V / 400V (50/60Hz) |
| Transfer type | Dual power (PC type) |
| Operating mode | Auto / Manual |
| Mechanical interlock | Built-in, both-source lockout |
| Electrical life | ≥ 6,000 operations |
| Mechanical life | ≥ 10,000 operations |
| Mounting | 35mm DIN rail |
| Ambient temperature | -5°C to +40°C |
Where These Switches Ship
Residential and small commercial mains-to-generator transfer. The DIN-rail PC-type body suits consumer units and small distribution boards where space is tight and cost is critical.
Frequently Asked Questions
Send Us an Inquiry
Need ATS 2/3/4-Pole 63A Dual Power PC Changeover Switch Pricing?
Send your quantities and target delivery port – our export desk replies with a wholesale quotation within 4 business hours.
