What is the MOQ for Solar PV Combiner Boxes?

MOQ varies by model. Contact us with your required model and quantity for exact MOQ, packing quantity and lead time.

What certifications do Walax Solar PV Combiner Boxes carry?

Walax products are manufactured under IEC/CE/RoHS compliance and can be supported with SONCAP, PVOC, SABER and other market-specific documentation on request.

How long is the production lead time?

Standard lead time is 7-15 days after order confirmation and deposit, depending on model and order volume.

Solar

Solar PV Combiner Boxes

Walax pre-wired solar PV combiner boxes merge 1-24 strings into a single DC feed, with DC surge protection, fuse holders and DC isolators integrated. Rated DC 1000V/1500V in IP65/IP66 UV-resistant enclosures – engineered for rooftop and utility-scale plants across Africa, Southeast Asia and the Middle East.

Product Range

Browse All Solar PV Combiner Boxes

Pre-wired DC combiner boxes for rooftop, commercial and utility-scale solar arrays. 12 to 24 PV string inputs at 500V to 1000V DC, with per-string DC fuses, DC isolator and Class II surge protection to IEC 61439-2. Click any product for full specifications and wholesale pricing.

Walax 12-Way PV Combiner Box 500V IEC 61439

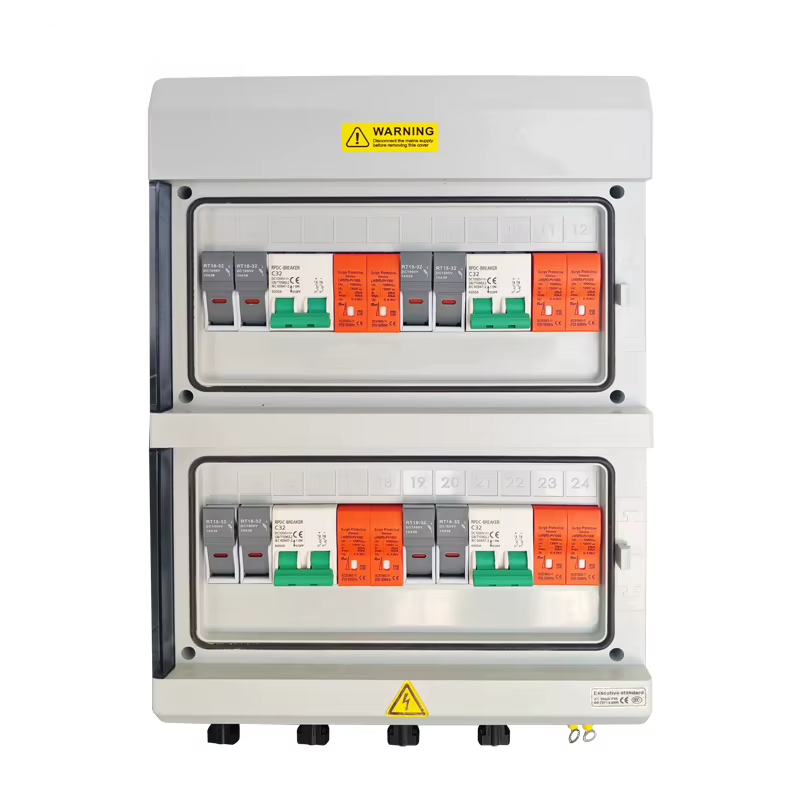

Walax 24-Way Solar Combiner Box 1000V DC IP67

FAQ

Frequently Asked Questions

What is a PV combiner box used for?

It aggregates several PV string outputs into a single DC feed between the modules and the inverter, while providing per-string fuse protection, surge protection and a DC isolator switch for maintenance.

What is the difference between a 12-way and a 24-way box?

A 12-way box combines up to 12 PV strings at 500V DC, sized for residential and small commercial arrays. A 24-way box combines up to 24 PV strings at 1000V DC for commercial and utility-scale plants.

Does it include surge protection?

Yes – a Class II DC SPD (In 20kA, Imax 40kA) is fitted as standard on both poles to protect the inverter from lightning-induced surges.

What enclosure ratings are available?

IP65 for indoor / outdoor wall-mount; IP67 with anti-UV SMC enclosure for harsh sites; stainless-steel and hot-dip galvanised steel also available on request.

Can the fuses be replaced on site?

Yes – standard gPV fuse holders accept replacement fuses without tools.

Can it be supplied with monitoring?

Yes – an optional smart module reports per-string current, bus voltage, SPD and breaker status over RS485 Modbus-RTU for SCADA / plant monitoring.

Do you provide test reports?

Yes – IEC 61439-2 type-test reports and CE documentation ship with every order. Country-specific certifications (SONCAP, PVOC, SABER) on request.
