What is the MOQ for Surge Protection Devices?

MOQ varies by model. Contact us with your required model and quantity for exact MOQ, packing quantity and lead time.

What certifications do Walax Surge Protection Devices carry?

Walax products are manufactured under IEC/CE/RoHS compliance and can be supported with SONCAP, PVOC, SABER and other market-specific documentation on request.

How long is the production lead time?

Standard lead time is 7-15 days after order confirmation and deposit, depending on model and order volume.

Grid Stability

Surge Protection Devices (SPD)

Walax surge protection devices – AC and DC, Type 1, 2 and 3 – guard installations against lightning-induced and switching overvoltages. Built for regions with severe lightning exposure and unstable grids, from African distribution networks to solar plants across the Middle East.

Product Range

Browse All Surge Protection Devices

Type 2 AC and DC surge protectors from 20kA to 100kA, 275V–385V AC and 500V–1000V DC, for mains distribution and solar PV systems. Click any product for full specifications and wholesale pricing.

1000V DC SPD Solar PV Lightning Arrester

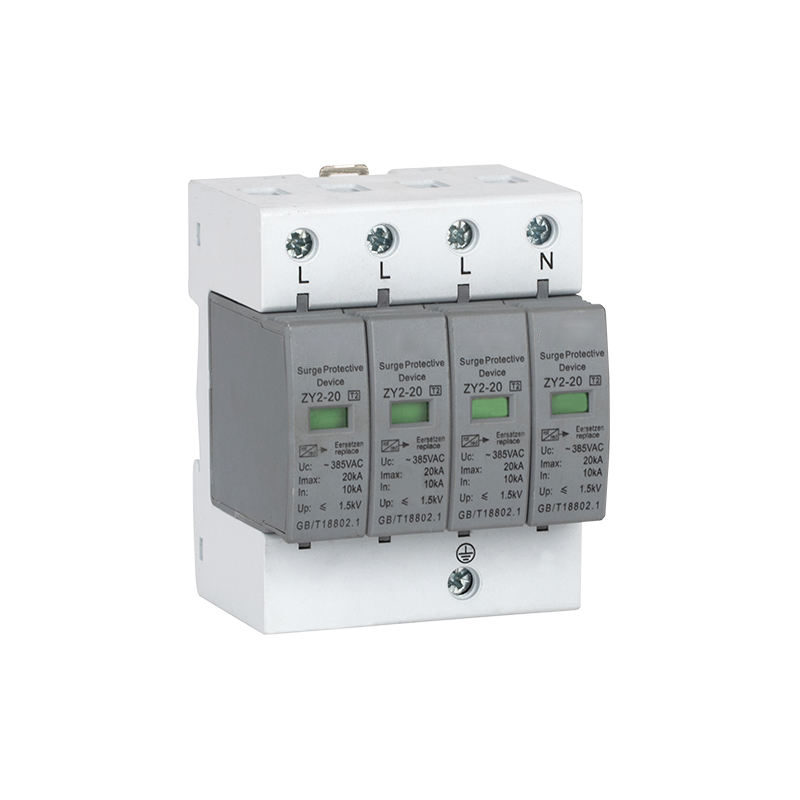

40kA Surge Protector 385V AC T2 Industrial

40kA Surge Protector 275V Single Phase T2

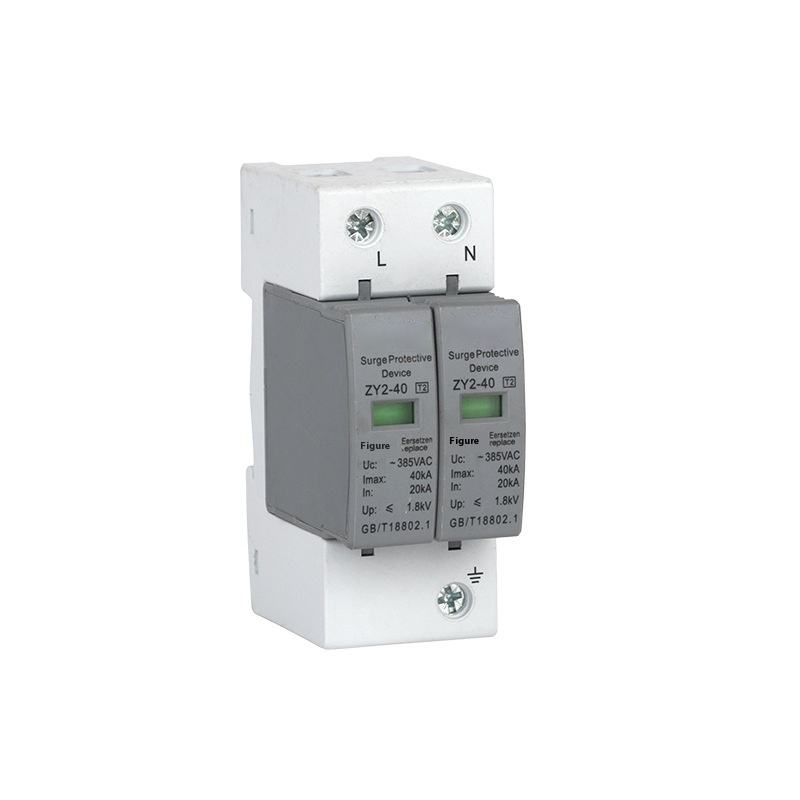

AC SPD 2P 40kA 385V Type 2 Surge Protector

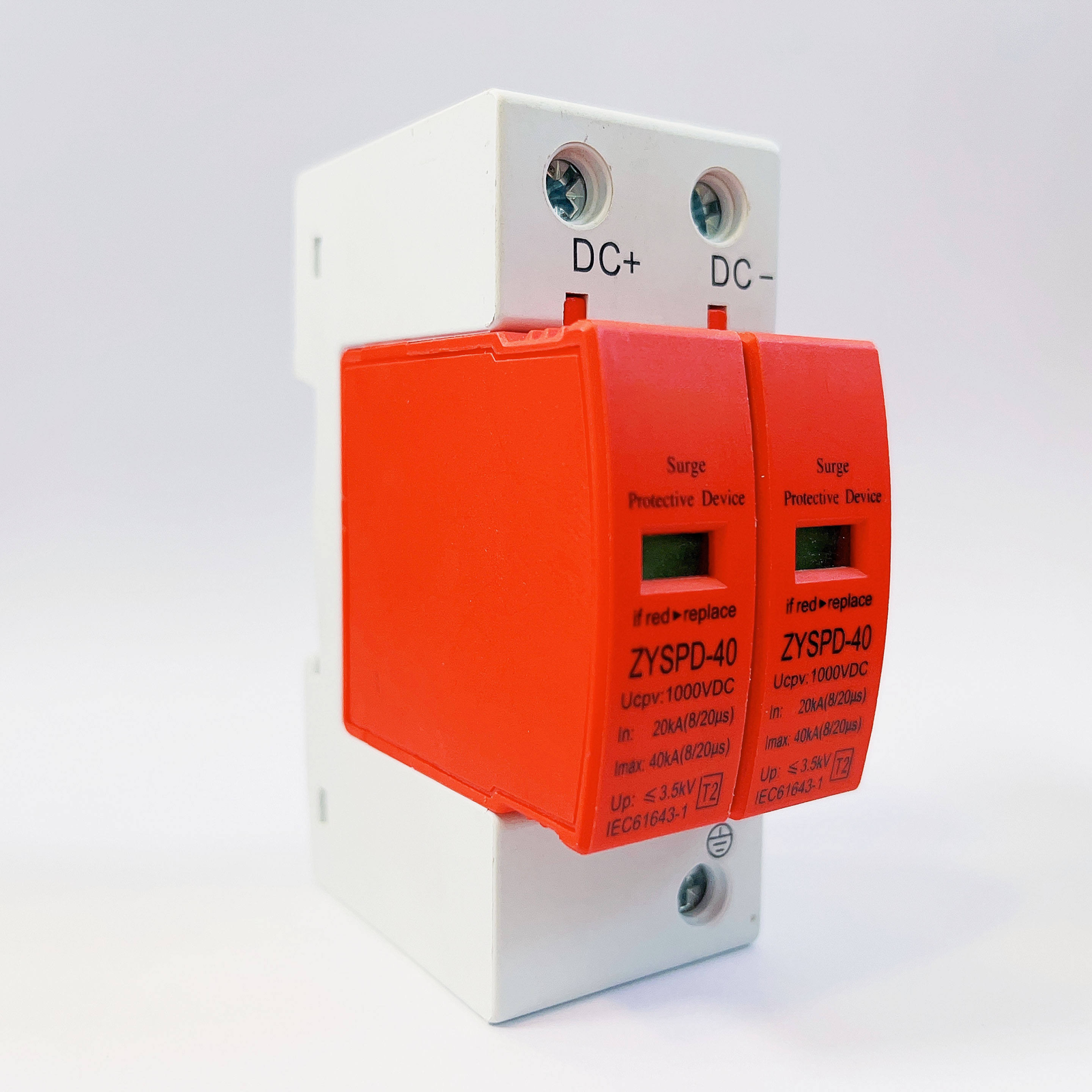

DC 1000V Surge Protector 2P/4P PV T2

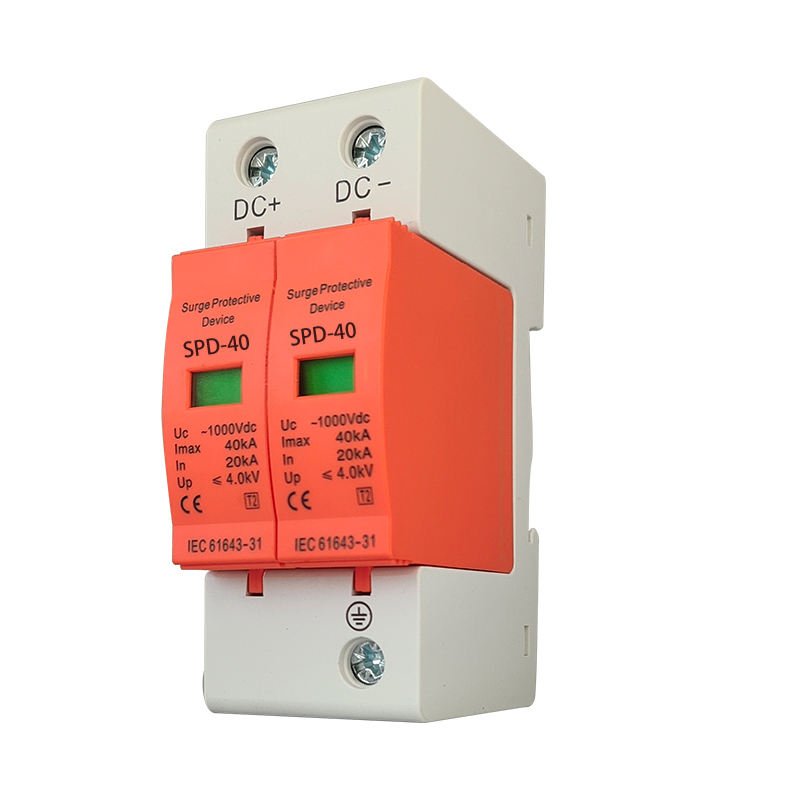

DC 500V 40kA Surge Protector 2P Solar

DC SPD 1000V 2P Solar T2 Lightning Arrester

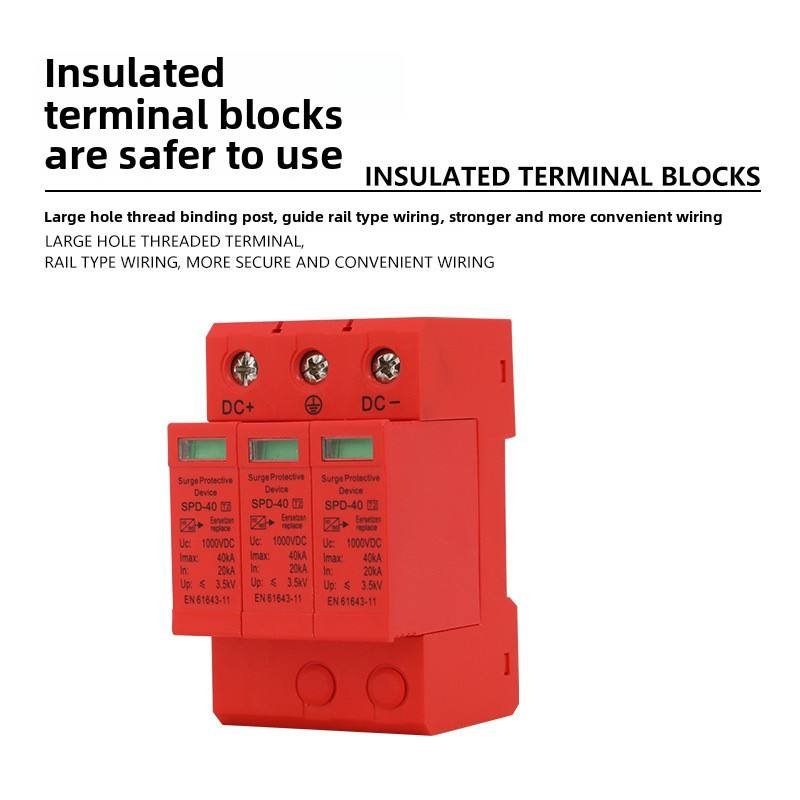

DC SPD 1000V Type 2 PV Solar Lightning Arrester

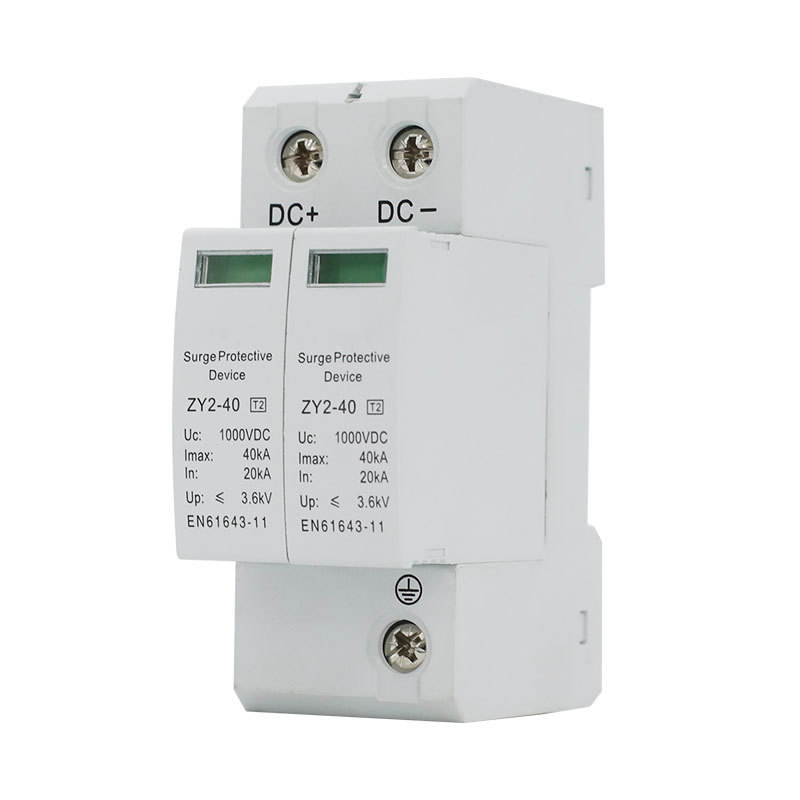

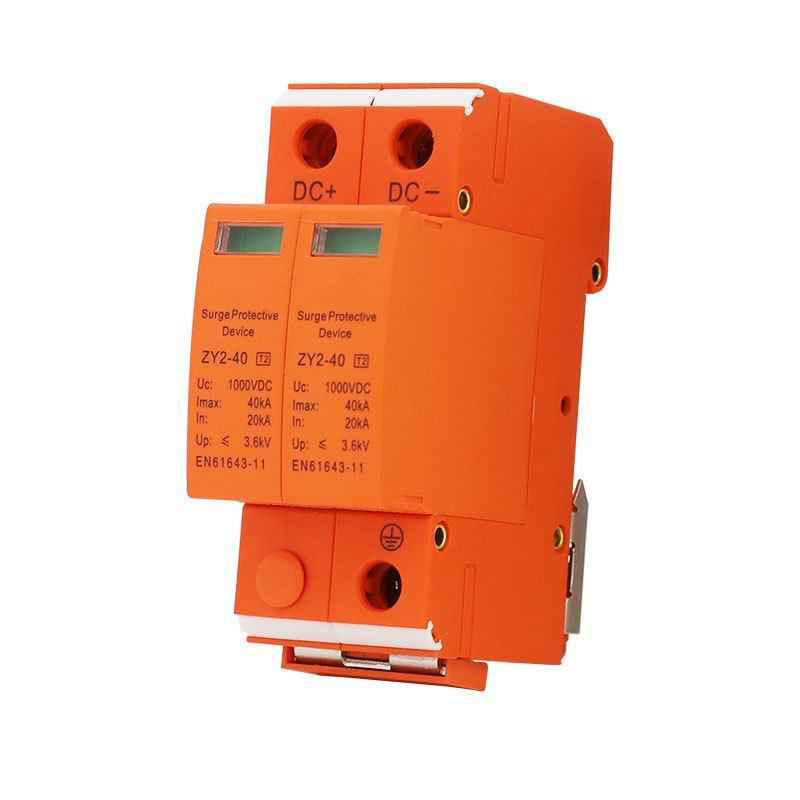

DC SPD 2P 1000V 40kA Solar Lightning Arrester

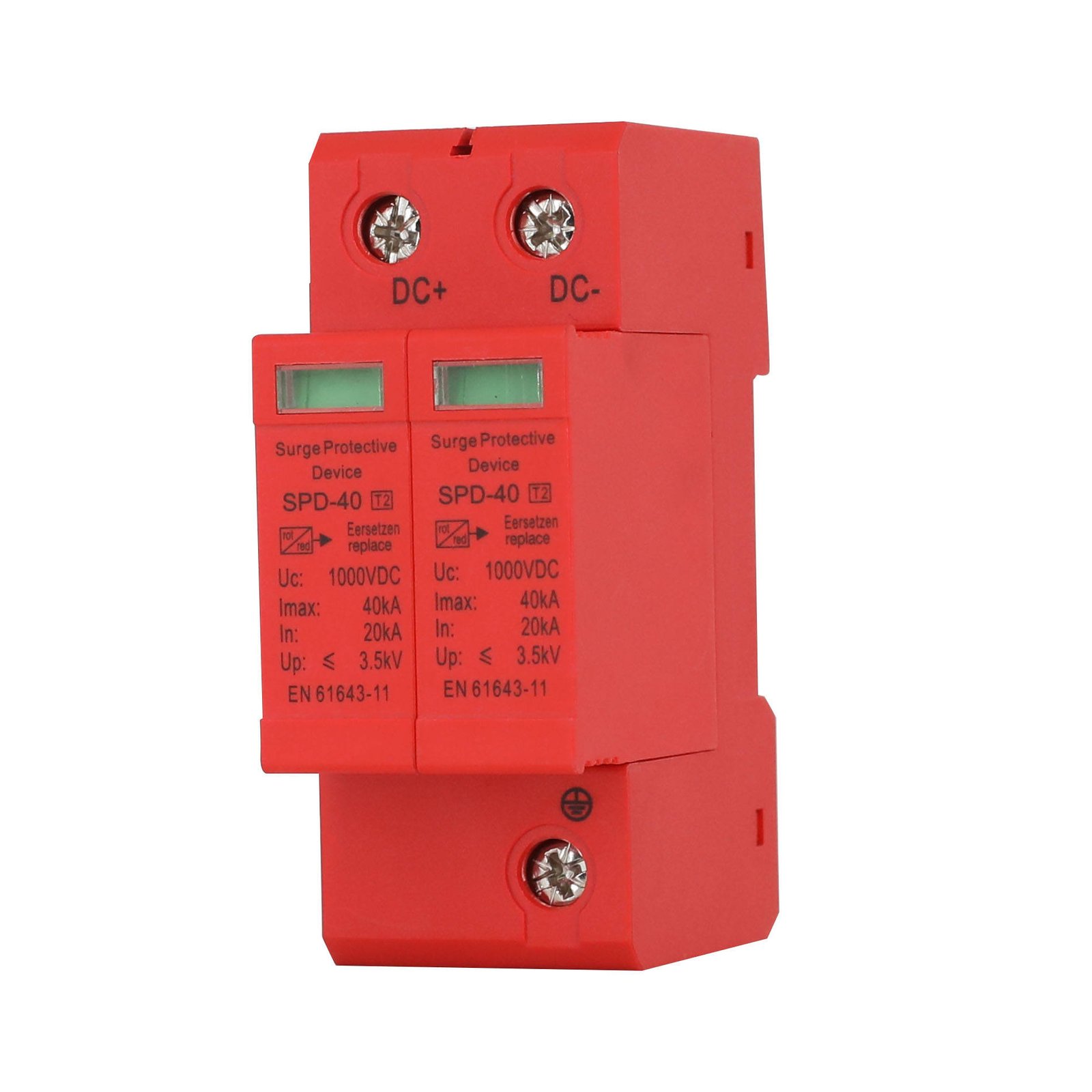

DC SPD 2P 1000V MOV Solar T2 Arrester

FAQ

Frequently Asked Questions

What is the difference between Type 1, Type 2 and Type 3 SPDs?

Type 1 protects against direct lightning (service entrance), Type 2 against switching and residual surges (distribution boards), Type 3 for sensitive end-equipment. Our range centres on Type 2 AC and DC protectors.

What does the kA rating mean?

The kA figure is the maximum discharge current (Imax) the SPD can safely divert once, while In is the nominal rating for repeated surges. Choose based on your exposure level and local code.

Do you supply DC SPDs for solar?

Yes – we stock DC SPDs rated 500V–1000V for PV string and combiner-box protection, plus AC SPDs for mains distribution boards.

What is the MOQ for SPD orders?

MOQs are flexible per SKU to support mixed containers. Share your target quantities and we will confirm the best configuration.

Do you provide test reports?

Yes – IEC 61643-11 type-test reports and CE documentation accompany every shipment. Country-specific certifications available on request.
