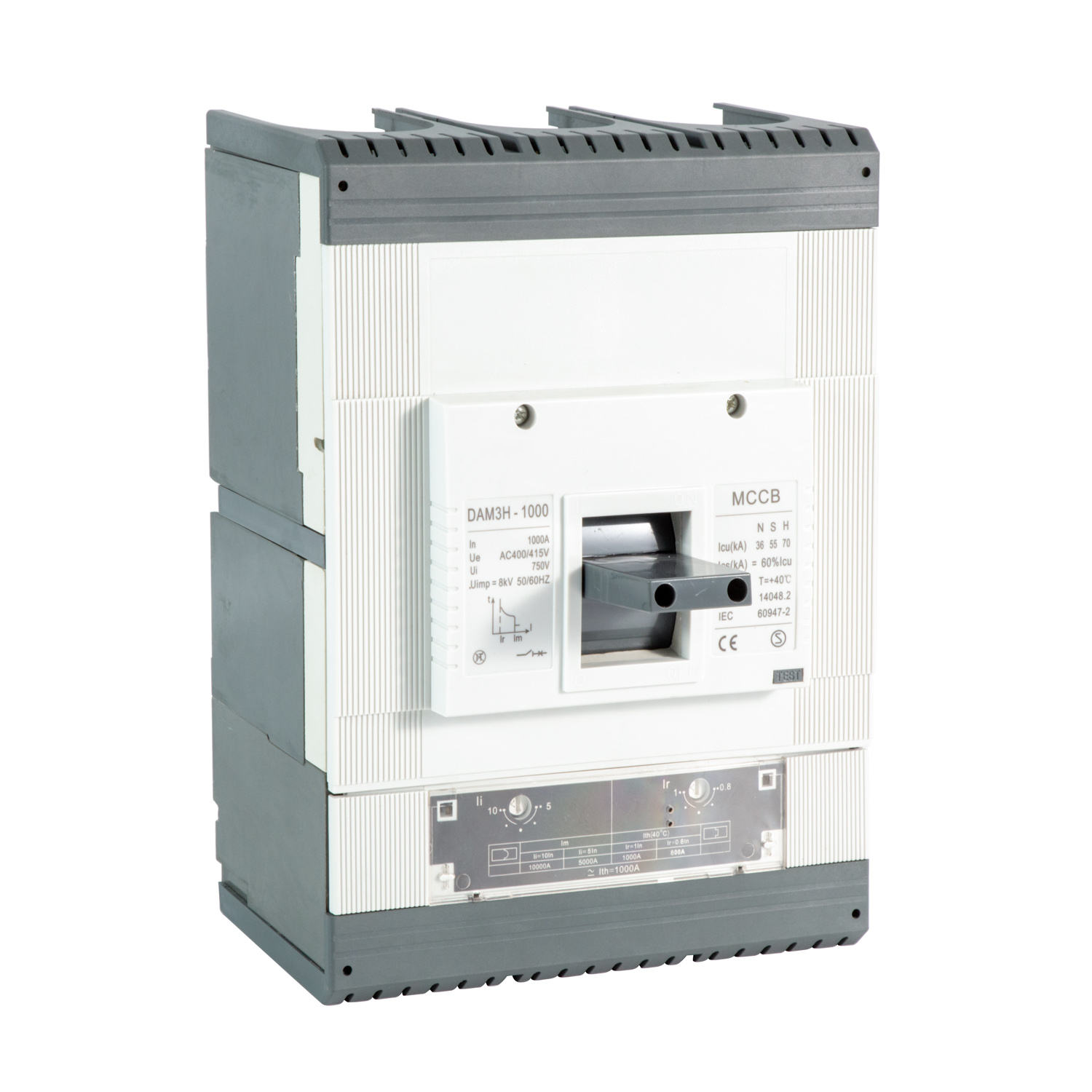

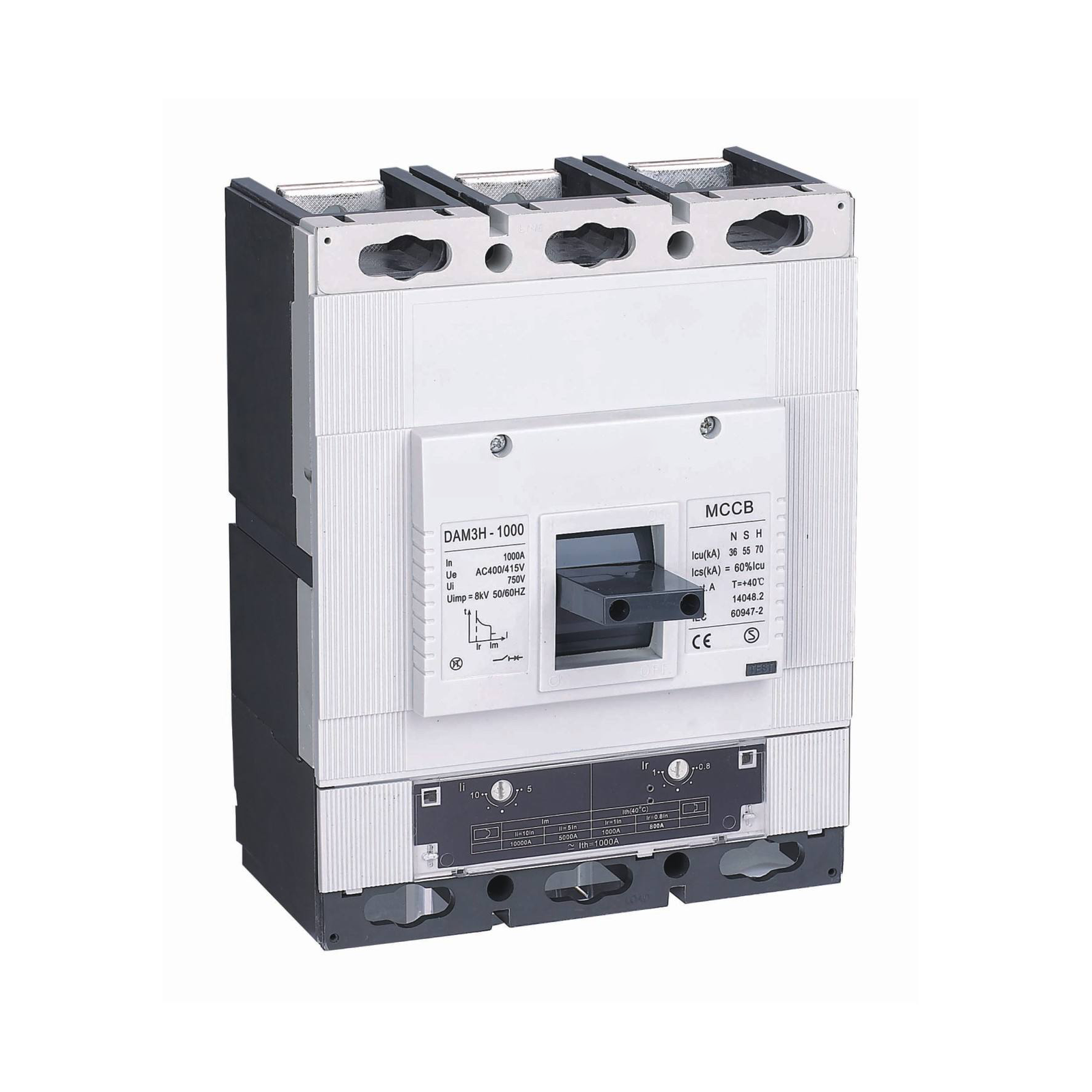

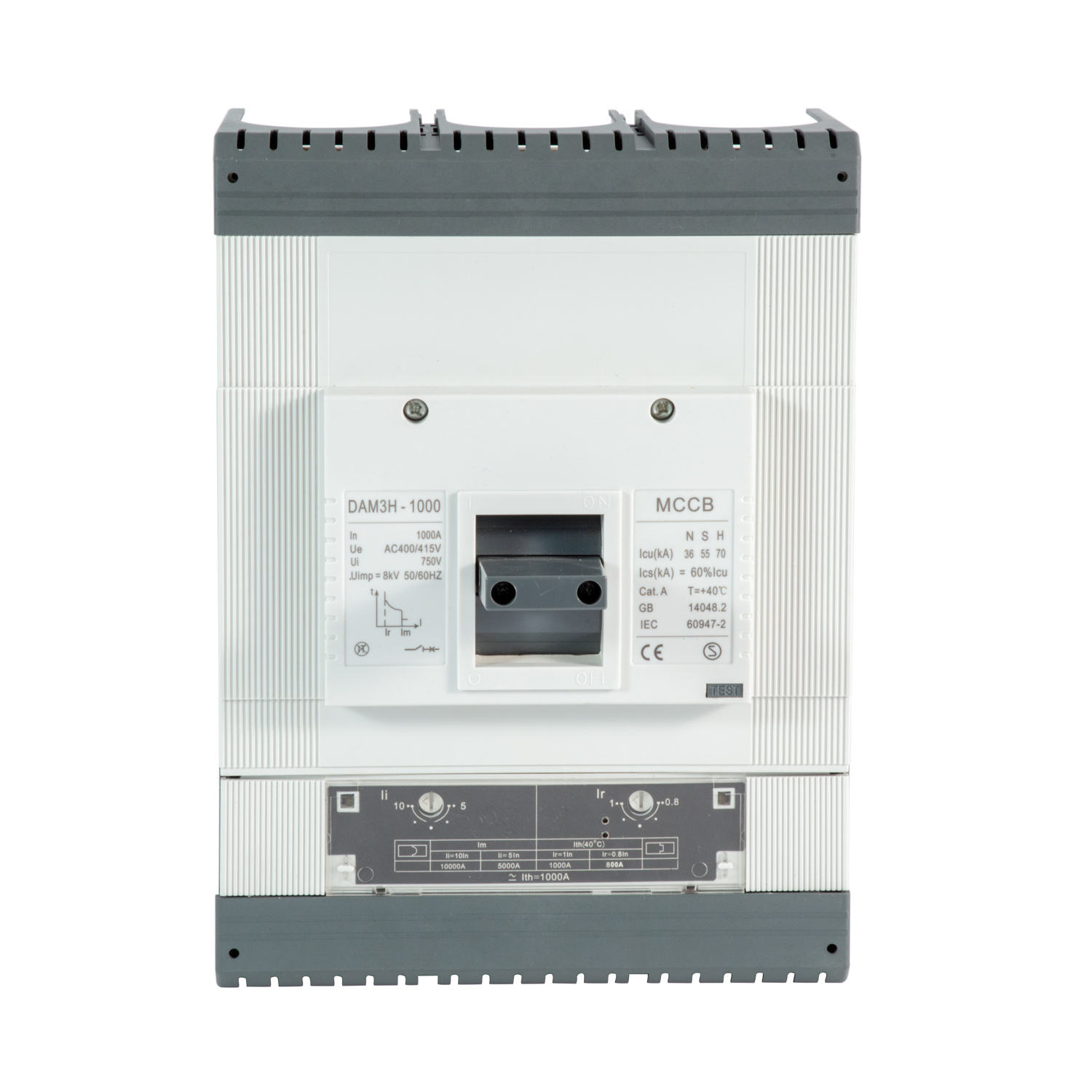

MCCB 1000A Thermal Magnetic Adjustable Circuit Breaker
Walax 1000A molded case circuit breaker with adjustable thermal-magnetic protection, overload adjustable from 0.7 to 1.0×In. A main-incomer breaker for large distribution boards and industrial switchgear.
- Factory-direct pricing · OEM/ODM branding · IEC/CE compliance
- Wholesale & project supply to Africa, SE Asia & the Middle East
1000A Main Incomer
Handles large incoming supplies for industrial switchgear and distribution.
0.7–1.0×In Overload
Wide overload adjustment allows precise matching to the actual load.
High Breaking Capacity
50–65kA withstands the high fault levels of large installations.
Technical Specifications
Standard ratings listed below – custom configurations available on request. Contact our engineers to confirm parameters for your market.
| Standard | IEC 60947-2 · CE |
| Rated current (In) | 1000A |
| Poles | 3P / 4P |
| Rated voltage | AC 400V / 690V (50/60Hz) |
| Breaking capacity | 50kA – 65kA |
| Trip type | Thermal-magnetic (adjustable) |
| Overload adjustment | 0.7 – 1.0 × In |
| Mounting | Fixed / draw-out |
| Mechanical life | ≥ 10,000 operations |
| Ambient temperature | -5°C to +40°C |
Where These Breakers Ship
Main incomers for industrial plants, commercial buildings and large distribution boards. The 1000A rating and adjustable overload suit substantial electrical infrastructure.
