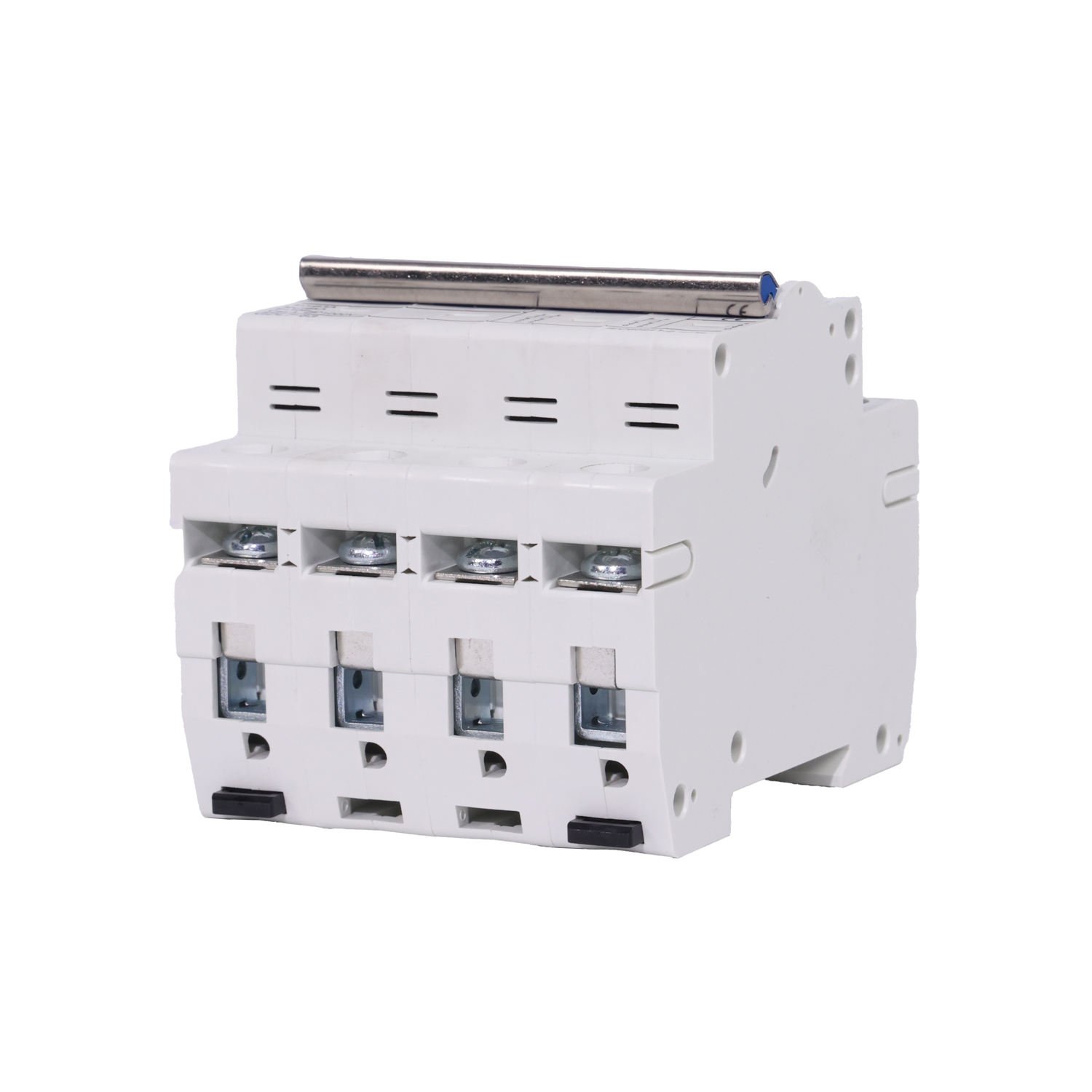

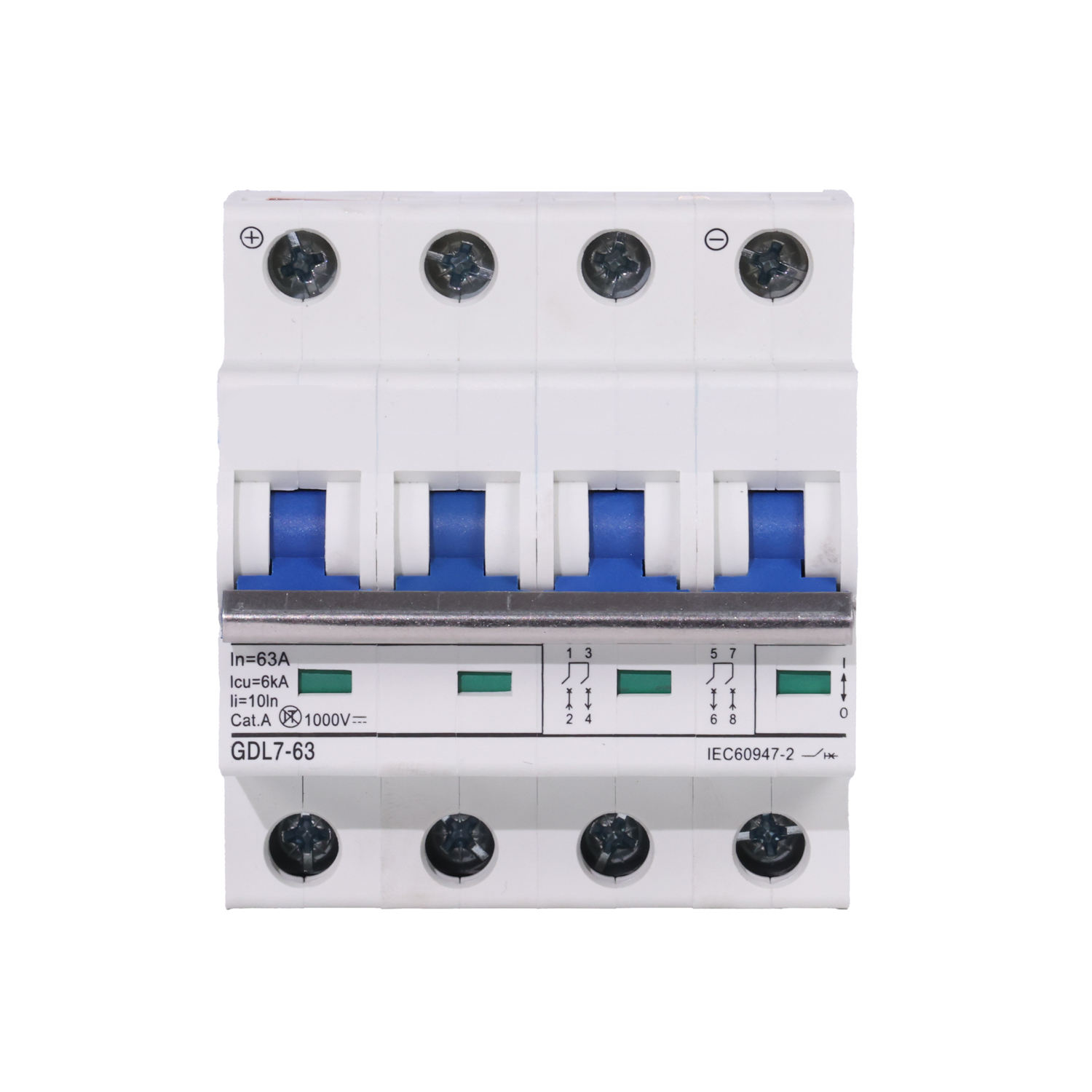

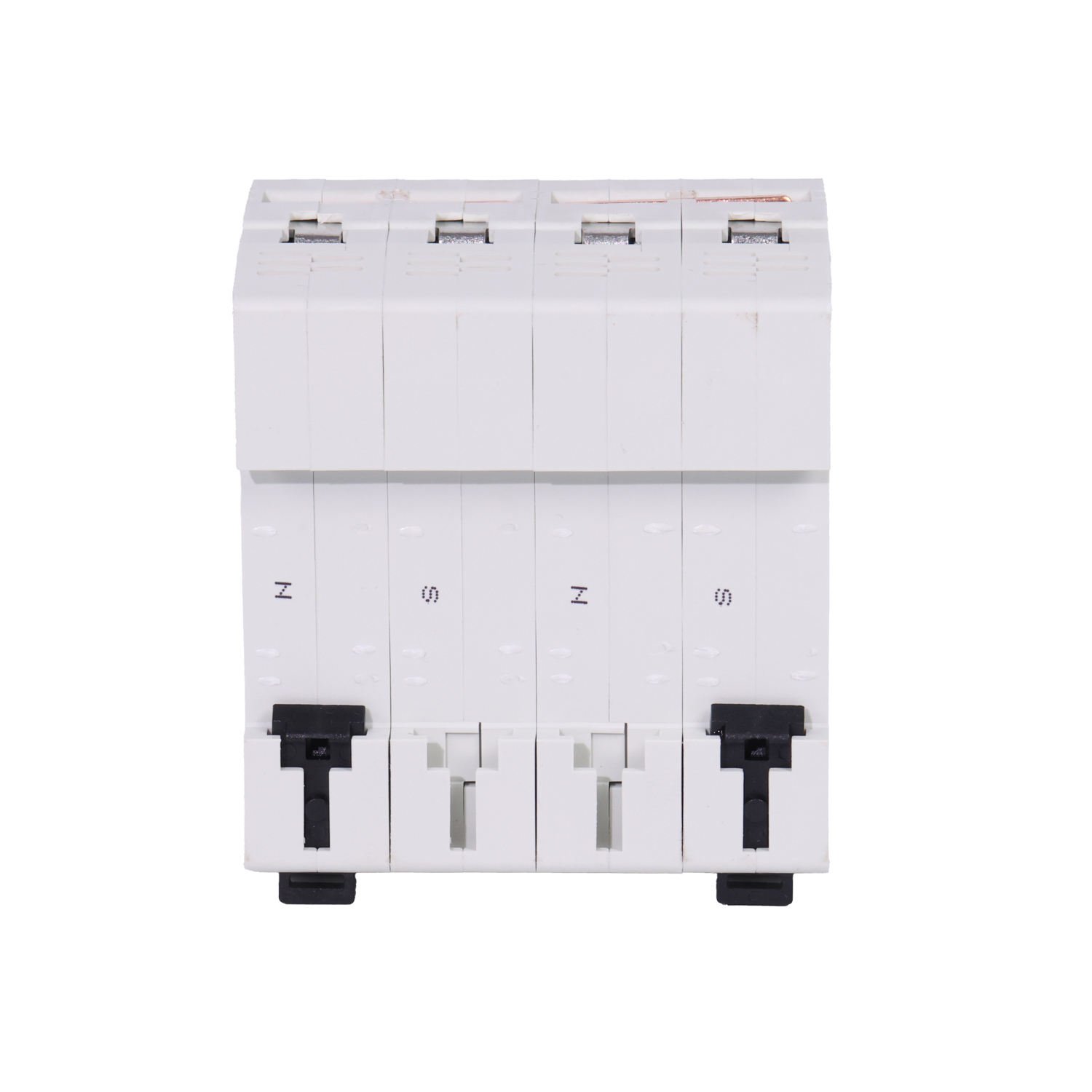

DC MCB 1000V 4P Solar PV Miniature Circuit Breaker

Walax DC MCB purpose-built for photovoltaic string and array isolation up to 1000V DC. Bidirectional arc-extinguishing chamber handles the unique demands of DC fault currents — the right choice between PV modules and the inverter combiner.

DC Arc-Quench Chamber

Bidirectional magnetic blow-out and special arc-extinguishing grid handle DC fault currents where there is no natural zero crossing.

1000V DC Rated

Tested and rated at 1000V DC per IEC 60947-2 — not a repurposed AC breaker with a DC label.

PV Combiner Ready

Drops directly into a 35mm DIN rail inside our PV combiner boxes; pairs with DC fuses and DC SPDs in the same assembly.

Specifications

Technical Specifications

Standard ratings listed below – custom configurations available on request. Contact our engineers to confirm parameters for your market.

Standard	IEC 60947-2 · CE
Rated current	10A – 63A
Poles	4P (DC, bidirectional)
Rated voltage	DC 1000V
Breaking capacity	6kA (DC)
Tripping curve	C (PV-optimised)
Electrical life	≥ 4,000 operations
Mechanical life	≥ 20,000 operations
Mounting	35mm DIN rail
Polarity	Bidirectional — installs either direction
IP protection	IP20 (after wiring)
Ambient temperature	-5°C to +40°C

Applications

Where This Breaker Ships

Solar PV combiner boxes, off-grid battery banks, DC distribution cabinets, telecom DC power plants. Use upstream of the inverter to provide code-compliant disconnect means for PV strings and battery banks.

FAQ

Frequently Asked Questions

Is this breaker bidirectional?

Yes. The arc-extinguishing chamber is bidirectional so the breaker installs correctly regardless of current direction — critical for PV strings where current can flow either way under fault conditions.

What's the difference between DC and AC MCBs?

AC breakers rely on the natural zero-crossing of the AC waveform to extinguish the arc. DC breakers need a magnetic blow-out chamber because DC has no zero crossing. Never substitute an AC MCB for DC service.

Can I use this at 1500V DC?

No — this model is rated for 1000V DC only. Contact us for 1500V DC options for utility-scale PV installations.

Do you supply PV combiner boxes with this MCB pre-installed?

Yes — our solar PV combiner boxes ship with this MCB (or higher-rated DC breakers) pre-wired and tested.
