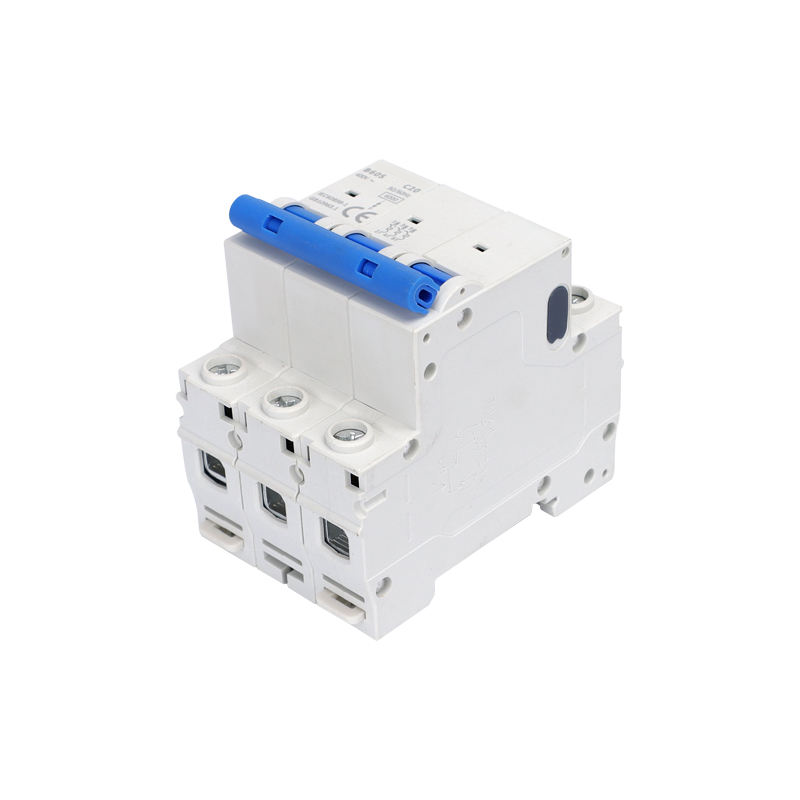

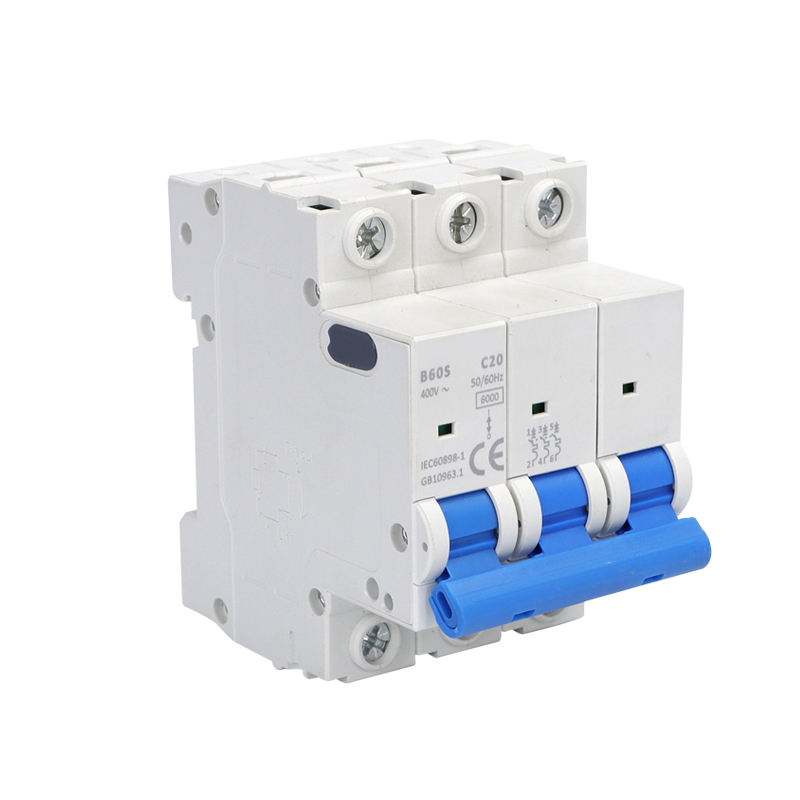

NXB-60 MCB 3P 10A-63A DIN Rail 6kA 400V
Walax NXB-60 three-pole MCB for three-phase distribution at 400V. Standard protection for small-motor feeders, three-phase socket outlets, and sub-main circuits in industrial and commercial installations across 50Hz and 60Hz markets.
- Factory-direct pricing · OEM/ODM branding · IEC/CE compliance
- Wholesale & project supply to Africa, SE Asia & the Middle East
Three-Phase Protection
All three poles trip simultaneously on fault — protects downstream three-phase equipment from single-phasing and phase-to-phase faults.
400V 50/60Hz
Rated for both 50Hz and 60Hz three-phase grids — covers the full export market including Africa, Asia, Middle East and Latin America.
D-Curve for Motors
D-curve calibration trips at 10-20× rated current — the right specification for motor starting applications without nuisance tripping.
Technical Specifications
Standard ratings listed below – custom configurations available on request. Contact our engineers to confirm parameters for your market.
| Standard | IEC 60898-1 · CE |
| Rated current | 10A – 63A |
| Poles | 3P |
| Rated voltage | AC 400V (50/60Hz) |
| Breaking capacity | 6kA |
| Tripping curve | C / D |
| Electrical life | ≥ 4,000 operations |
| Mechanical life | ≥ 20,000 operations |
| Mounting | 35mm DIN rail |
| Terminal capacity | Up to 25 mm² |
| Module width | 54mm (3-pole) |
| Ambient temperature | -5°C to +40°C |
Where This Breaker Ships
Three-phase sub-boards feeding small motors (pumps, compressors, fans), three-phase socket outlets, workshop power distribution, and three-phase lighting loads. NXB-60 is widely used as the main breaker for small industrial control panels.
