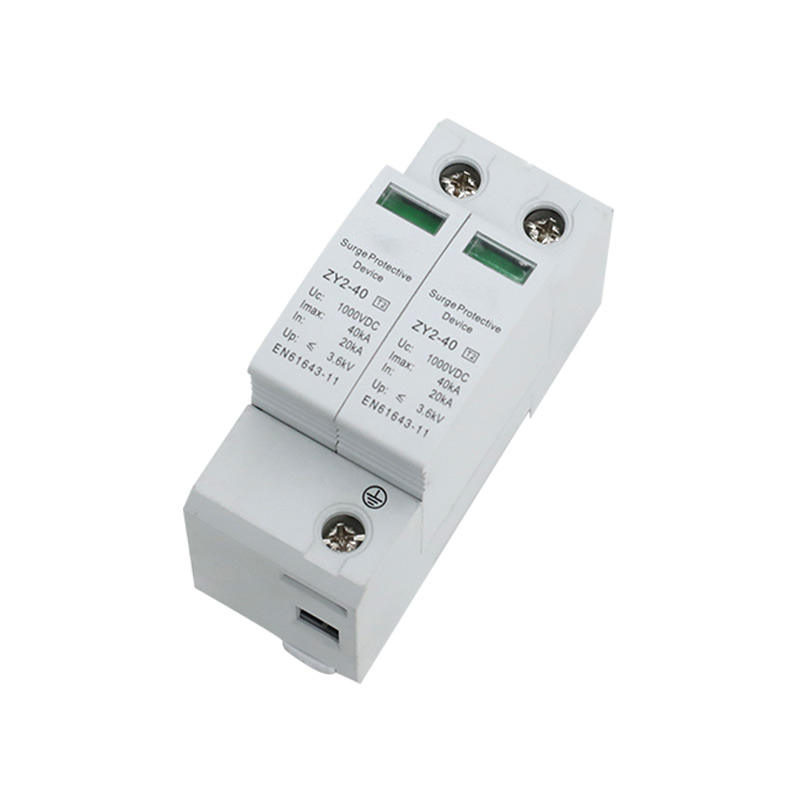

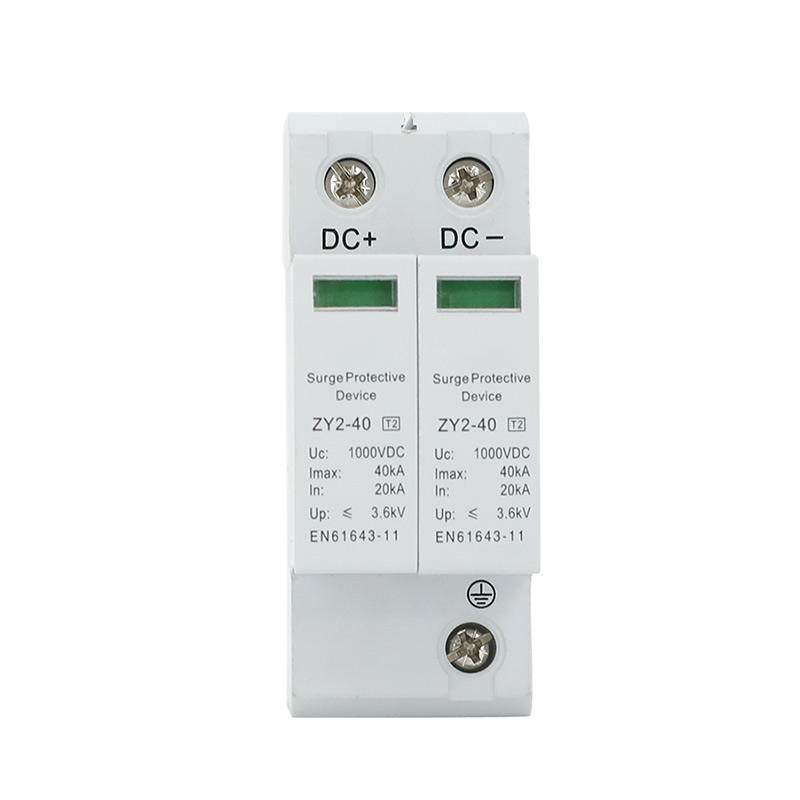

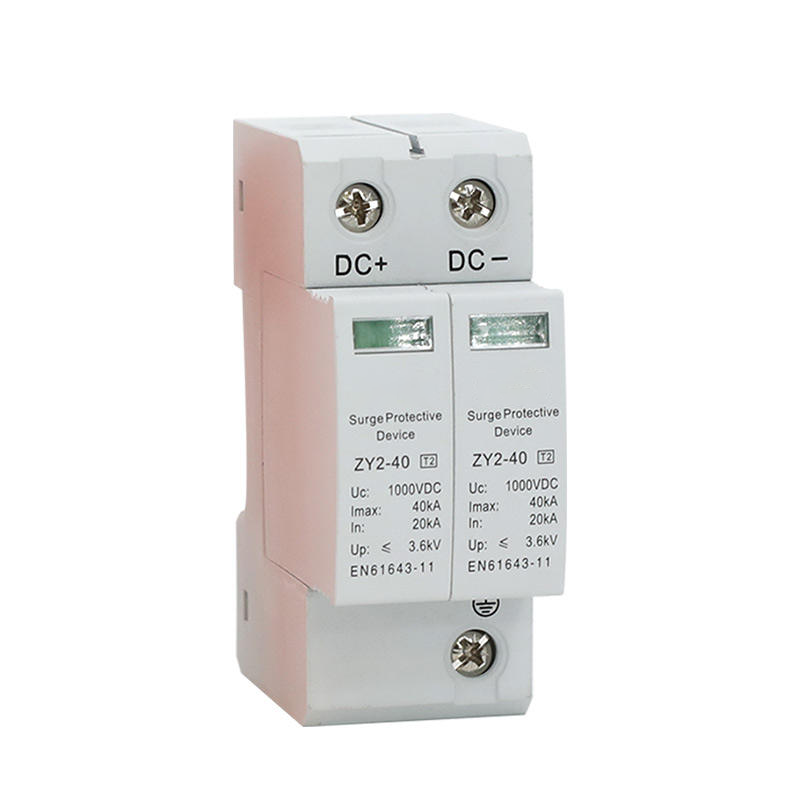

DC SPD 1000V 2P Solar Surge Protector T2
Walax DC SPD for 1000V solar systems in 2-pole configuration with Type 2 protection. Protects PV strings and inverters from lightning-induced surges, ideal for combiner boxes and DC distribution.
- Factory-direct pricing · OEM/ODM branding · IEC/CE compliance
- Wholesale & project supply to Africa, SE Asia & the Middle East
1000V 2P
Protects positive and negative DC conductors on 1000V PV strings.
Type 2 Protection
Diverts induced and switching surges away from inverters.
DIN-Rail Mount
Installs inside combiner boxes and DC cabinets.
Technical Specifications
Standard ratings listed below – custom configurations available on request. Contact our engineers to confirm parameters for your market.
| Standard | IEC 61643-31 · CE |
| Max continuous voltage (Uc) | 1000V DC |
| Max discharge current (Imax) | 40kA |
| Nominal discharge current (In) | 20kA |
| Voltage protection level (Up) | ≤ 3.8kV |
| Type | Type 2 |
| Poles | 2P |
| Mounting | 35mm DIN rail |
| Ambient temperature | -40°C to +80°C |
Where These Devices Install
1000V solar PV combiner boxes and DC distribution, protecting PV strings and inverters from lightning-induced and switching surges.
