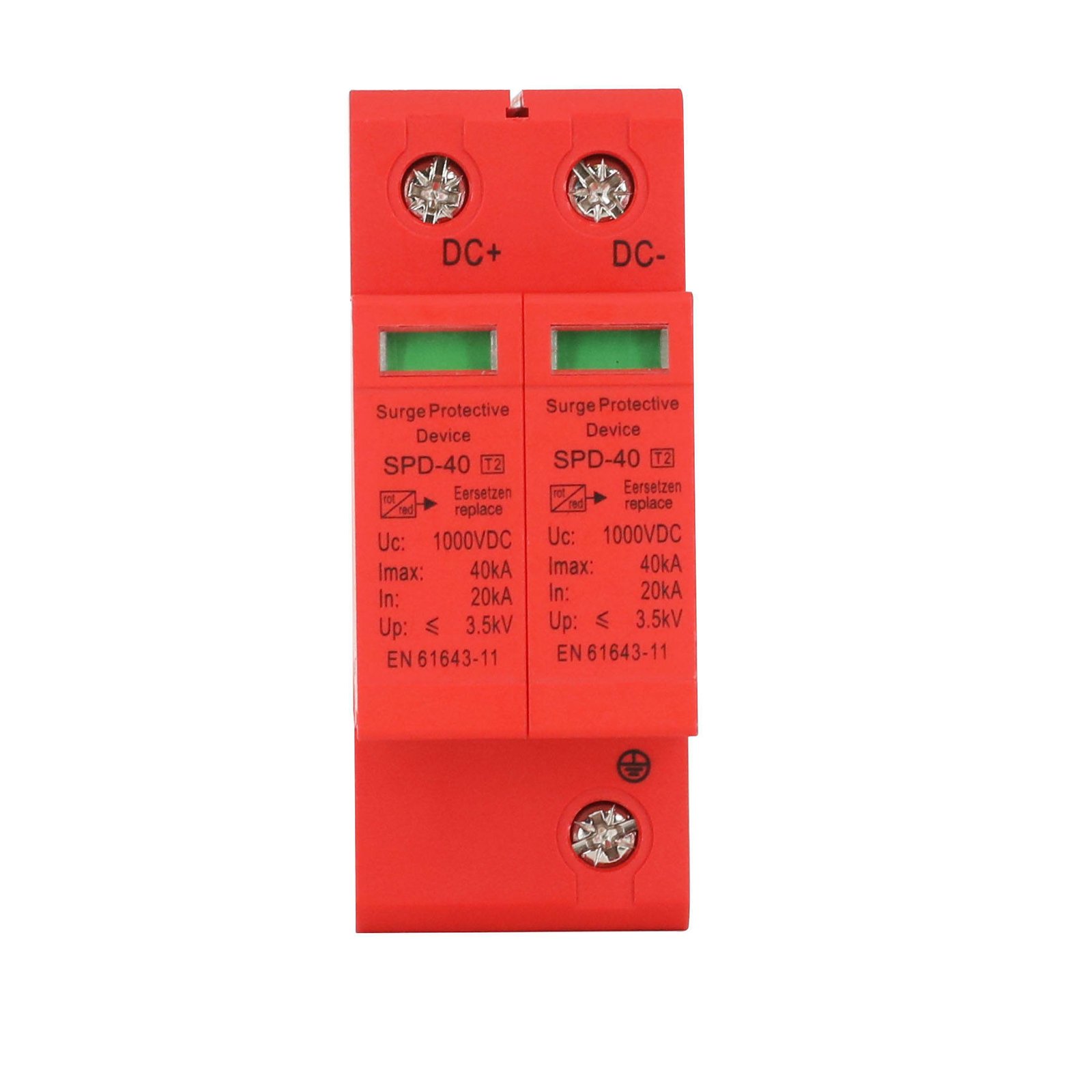

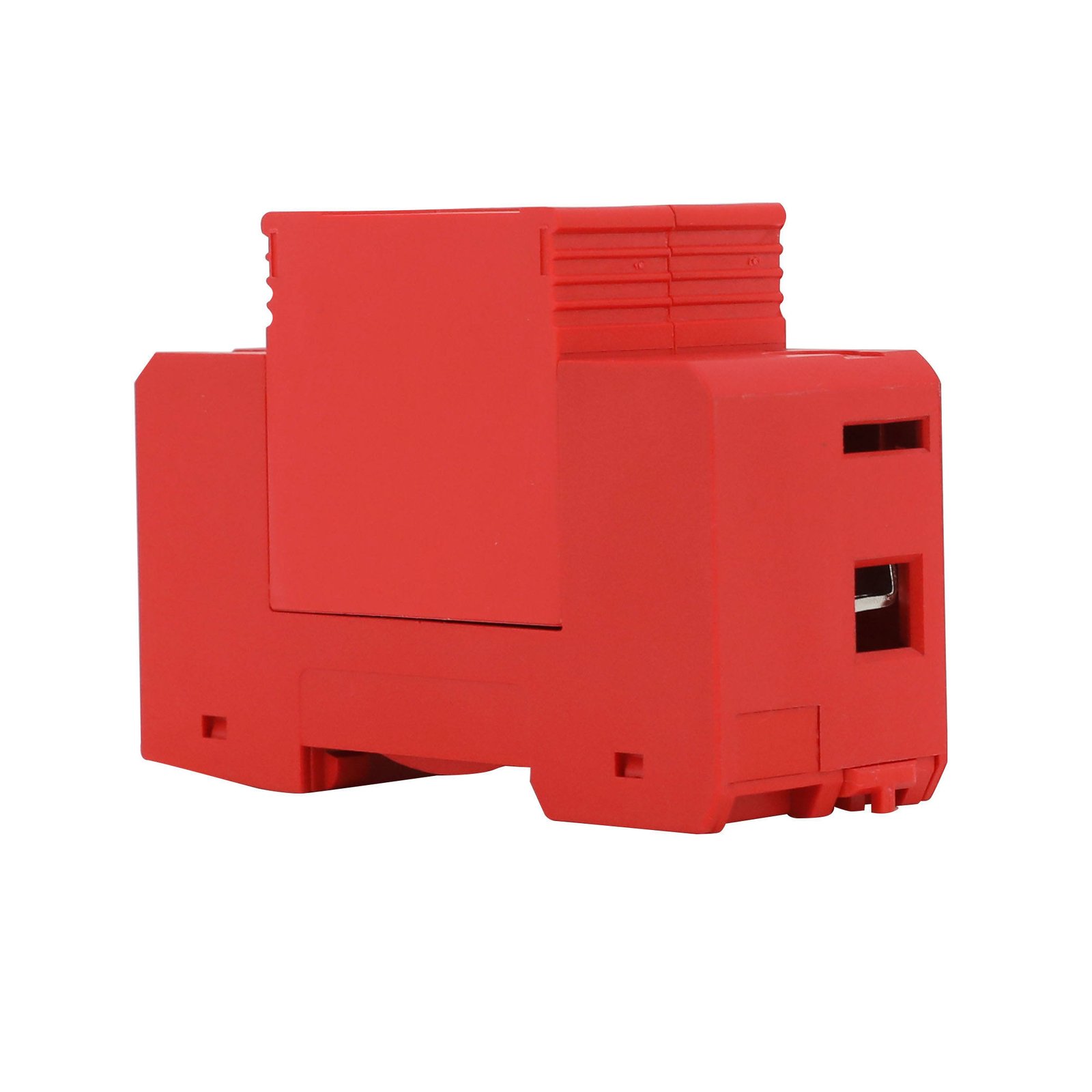

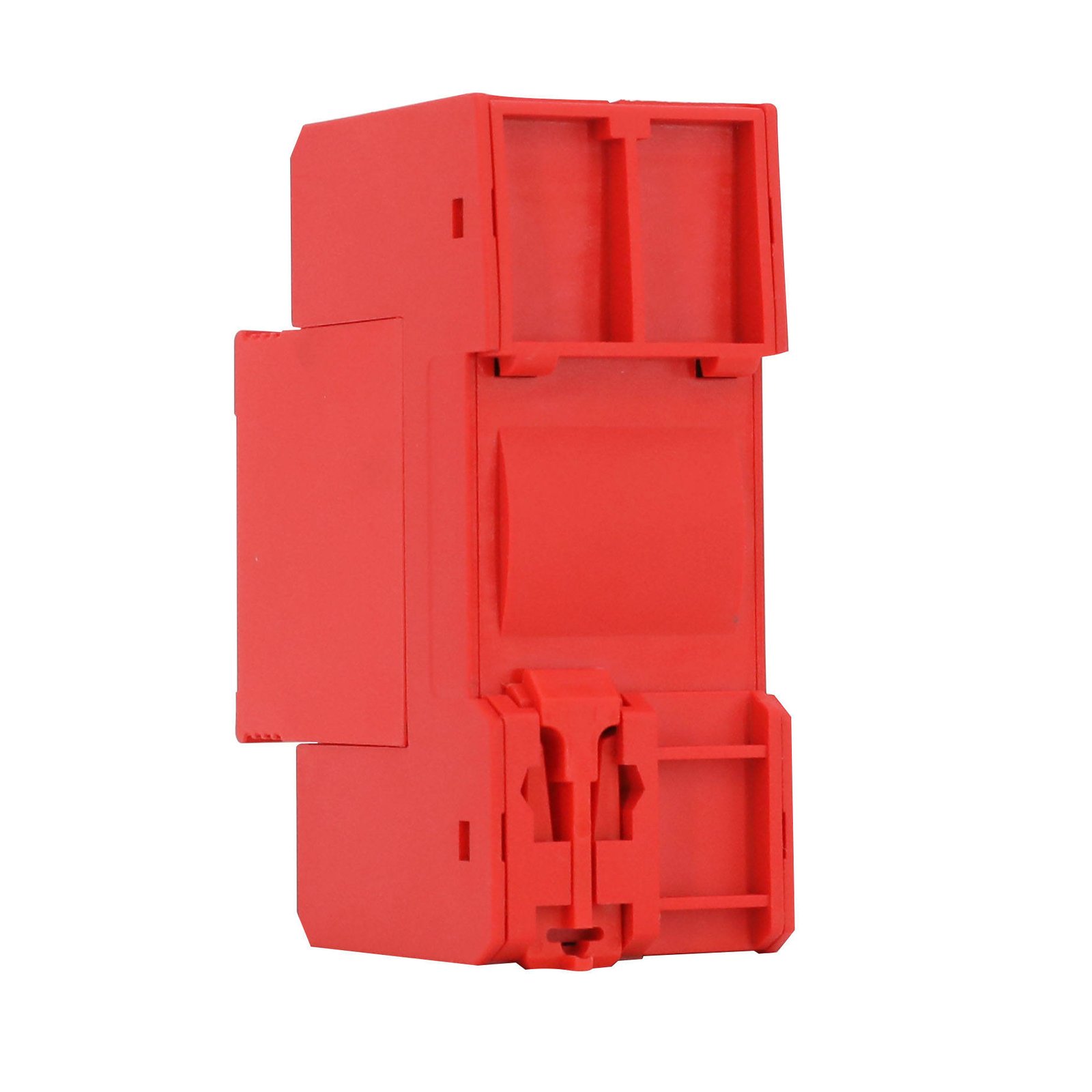

DC SPD 2P 1000V MOV Solar Surge Protector T2
Walax 2-pole 1000V DC surge protector using MOV technology, Type 2 rated for PV systems. Reliable protection of solar strings and inverters against induced and switching surges.
- Factory-direct pricing · OEM/ODM branding · IEC/CE compliance
- Wholesale & project supply to Africa, SE Asia & the Middle East
MOV Technology
Proven metal-oxide varistor clamping for dependable surge protection.
1000V 2P
Protects positive and negative DC conductors on PV strings.
Type 2 Rated
The standard for combiner-box and DC distribution protection.
Technical Specifications
Standard ratings listed below – custom configurations available on request. Contact our engineers to confirm parameters for your market.
| Standard | IEC 61643-31 · CE |
| Max continuous voltage (Uc) | 1000V DC |
| Max discharge current (Imax) | 40kA |
| Nominal discharge current (In) | 20kA |
| Voltage protection level (Up) | ≤ 3.8kV |
| Type | Type 2 |
| Technology | MOV (metal-oxide varistor) |
| Poles | 2P |
| Mounting | 35mm DIN rail |
| Ambient temperature | -40°C to +80°C |
Where These Devices Install
1000V solar PV combiner boxes and DC distribution, protecting strings and inverters using proven MOV surge-diversion technology.
